Temp Fence New Zealand Standard for Sale

Temp fence consists of welded mesh panel, round tube frame(square tube frame), plastic feet and top connection. This kind of fence has a fine structure; the globality, mobility and environmental suitability are magnificent. The fence is easy to transport, dismantle easily, low cost. It has the advantage of one cost, many times used.

AS4687 Temp Fence Specification

our temp fence specification is not the listed one we also can customized you own size such as 2.0m 2.4m height and a width etc

Fence panel height x length	2.1x2.4m, 1.8x2.4m, etc
Wire diameter	3mm, 4mm
Welded mesh opening	60x150mm (popular), 75x75mm, 75x100mm, 60x75mm
Fence frame pipe	32mm (popular), 42mm, 48mm, etc
Fence pipe thickness	1.4mm, 1.6mm, 1.8mm or 2mm
Fence Clamp	suit for different outer diameter pipe 75mmcenter space
Material	low carbon steel
Surface treatment	hot dipped galvanized

Fence base material	plastic temporary fence block with concrete inside
Fence base size	blow-molded: 600x220x150mm injection-molded: 560x240x130mm

Temp Fence Panels Extra brace frame tube	32mm, 42mm or 48mm O.D
Brace height	1.8m

OUTSTANDING BENEFITS OF Weld Mesh Temp Fence

Our Temp Fence; One-person installation. The infill panel and fencing base are installed in a plug-in type with light-weight welded construction. It can be easily removed and mobile installed when necessary. This can be done by one person, at most two men.
Quick access anywhere on site. There is no need to dig holes or lay foundations; removable and stable platy fencing feet can adapt cement or asphalt areas. The flexible isolation angle can rapid re-configuration of the construction area.
Minimizes injuries by putting a higher security fence on sites. Quickly establish a fence for warning and cordoned off the hazardous area or preventing unauthorized entry.
Limits risks of theft and vandalism on job sites. It is anti-climb to prevent thieves from entering and protect property from damage.
Transparent worksite fence. Unlike temporary hoarding, welded infill panels are visible without any sight blocks.
Complete temp fence system. Expect fence panels, platy stable fencing feet, p shaped top coupler, foot screw (as needed) and shade clothes; other you wanted hardware can be supplied.

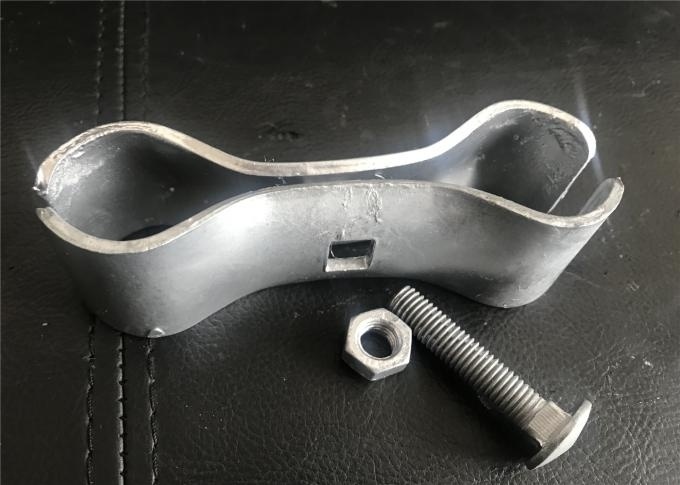

fence Clamp

temp fence Clamps are used to secure the panels together. Heavy-duty 4mm thick steel clamps join the Temp Fence panels and attach. Support stays to the panels. Formed for strength to resist bending and twisting and keep your site secure, completed

with a bolt and nut.

Finish: Hot Dipped Galvanized – 42 Microns

32mm 38mm 40mm tube clamp available

temporary fence hire 3 temporary fence hire 4

3"/75mm center distance temporary fencing clips suit O.D. 25mm O.D. 32mm OD38mm O.D. 40mm O.D. 42mm outer pipes
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM.
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on, depending on customers' requirements
Packing	All packing in papers made carton available assemble
PHOTOS

90mm/3.5" center distance temporary fencing clips temp fence hire factory direct supply
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM.
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on, depending on customers' requirements
Packing	All packing in papers made carton available assemble
PHOTOS

100mm /4" center distance clips for Outer Diameter Temp Fence Post
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM.
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on, depending on customers' requirements
Packing	All packing in papers made carton available assemble or temp fence hire customized
PHOTOS

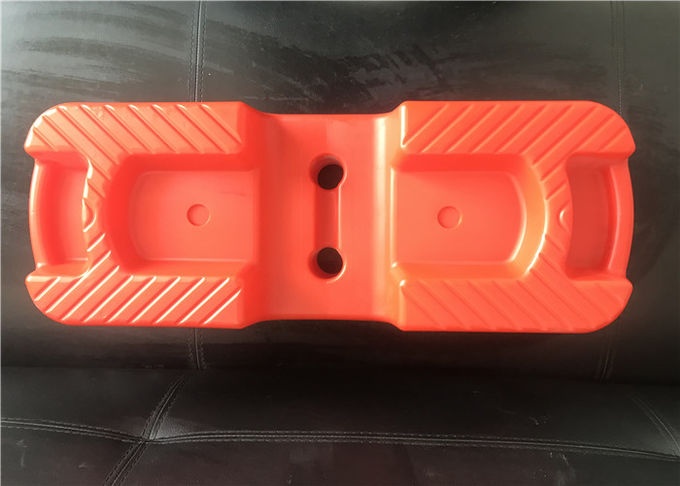

temp fence Concrete Feet

High Visibility, Orange, U.V. treated.
Filled with concrete for 32mm panels, 41.2mm, 38mm 25mm available
weight approx 30kg
Hand grips and stackable
Use with the temp fence panels, support stay, and pool fencing.

We are an actual blow molding temporary fencing base manufacturer. We sell temporary fencing bases not only to overseas but also to domestic fence manufacturers and trading companies, and they are maybe you temporary fencing suppliers such as XIANG YUAN also named YUELEI /PREMIUM Fence and XIANGMING, FANSI and so on; why you supplier buy from us cause good quality and reliable service and best price.

Compared with other HDPE fence block manufacturers, the advantage of temporary fencing blocks

We are not only HDPE temp fence foot manufacturers but also make temporary fencing systems, so we know what you need in the reality installation process.
We owned complete blow molding to make any center distance and the hole size from 25mm to 50mm or even 60mm to suit your temporary fencing post, such as 80mm/90mm/100mm center distance.
Buy from Melbourne temp fence trail order 870 pcs weight of 1.25kg minimum available customized you owned logo and business name onto fence base this is free for we owned customers.
All burrs of outside and inside of holes were cleaning professional looking.
The highest U.V. added HDPE materials and put a specific quantity of BHT powder to avoid the color fading.
Strong R&D last year, we developed a patent Melbourne temp fence base for Australia Customers.

Specification of temporary fencing blocks

temporary fence blocks
Length	600mm
Width	220mm
Height	150mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color	We are elderly temp fence hire; our temp fence blocks are available for all RAL.
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

temp fence BASE -TOPFENCE002HDPE
Length	620mm
Width	230mm
Height	130mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color temp fence hire	RAL
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

temp fence BASE
Length	620MM
Width	230MM
Height	90MM
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

temp fence BLOCK
Length	600mm
Width	228mm
Height	150mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

temporary fence BASE -TOPFENCE003
Length	620mm
Width	230mm
Height	130mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

Injection Moulding fence Blocks

polymer polypropylene temp fence base was one of eldest fence base presented in Australia market since 2006 years it made by commercial-grade PPC the materials are durable and more flexible even drop from high positions without a crack of concrete due to inside would put rebar with 6.00mm thickness to support concrete with base

temp fence BASE -FENCE009
Length	560mm
Width	245mm
Height	150mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	PPC/polymer polypropylene
Photos
