Temporary Fencing
We are one of the leading Portable temporary fencing factories; New Zealand temporary fence is also known as temporary fence panels, portable fence, easy fence, and removable fence. Materials: High-quality mild steel wire. We are the Top 5 temporary fencing factories and own our eight welding platforms and one plastic feet machine to control the best quality, which will last ten years. When used in conjunction with our temp fencing feet, stays and clamps, you'll have a complete temp fencing system that will be durable and reliable. Every year, we export so many containers to the city of Adelaide, Brisbane, Melbourne, Perth, Sydney, and Auckland. Our Australian standard temp fence panel can last more than ten years in Tropical and subtropical climates. These high-quality temp fence panels withstand these coastal environments, extend service life, and prevent breakage.
Features:
- The temporary fences are light and easy to handle while being robust at the same time;
- The feet are removable, making transportation and storage much easier and more efficient.
- Different specifications are available according to customers' particular inquiries or detailed drawings.
Application:
- The Australian temporary fencing panel to secure construction sites and private property.
- Temporary fencing panel of residential housing sites.
- Temporary fencing panel and crowd control barriers for the significant public. Events, sports, concerts, festivals, gatherings etc.
- Temporary fence panel safety fencing for swimming pools
Details
Fence panel
- bubble plastic at the bottom of the pallet to keep the bottom panel not destroyed by the pallet.
- Two metal tubes at the side of the pallet to make the whole pallet tight and strong enough.
- Have an iron or carton plate under the plastic bandage to protect the panels.
Fence Feet
All fence feet are put tightly and well packed by a metal pallet.
Clamps & Bolts
The clamps and bolts are packed in the carton box.
Details
Temporary Fence Common Specification | |
Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as the request |
Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as the request |
Plastic Feet | 600*220*150mm, or 580*245*130mm |
Surface Treatment | Hot-dipped galvanized or electric galvanized |
Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, Stay Support |
Australia Temporary Fence Popular Size | |
Wire Diameter | 3mm |
Mesh Opening | 60x150mm |
Panel Size | 2100x2400mm |
Vertical Pipe Size | O.D. 32mmx2.0mm, 150mm left at top and bottom |
Horizontal Pipe Size | O.D. 32mmx2.0mm |
Base Plate | 600x220x150mm |
Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, StaySupport |
Application of the N.Z. Temporary Fence
-
Temporary fencing to secure construction sites and private property.
2. Temporary fencing of residential housing sites.
3 Temporary fencing for major public. Events, sports, concerts, festivals, gatherings, etc.
Features
A smart temporary fence can quickly and easily be installed without disturbing the surface area by digging holes or laying foundations.
Specification of Portable temporary fencing
A smart temporary fence is an alternative to permanent fencing for storage, public safety or security, crowd control, or theft prevention. When used on construction sites, it is also called building hoarding. Other uses of the temporary fence include site division for significant events and public restrictions on industrial construction sites. Temporary fences are also frequently used in outdoor activities, parking lots, and emergency/disaster relief sites. It offers the benefits of affordability and flexibility.
Parameters Temporary Fencing Panels Cheapest
HDG 60gram-80gram temporary fence panels specifications | |
Dimensions | 2100mm(H)*2400mm(W) |
Tubing | OD 32mm*1.00mm thick |
Mesh Spacing | 60mm*150mm*2.70mm |
Infill mesh size | 1736mm*2336mm |
V wire number | 36 *sticks wire |
H wire number | 17 *sticks wire |
Finished 1300 temporary fence | 60gram-80gram |
Weight of panels | 10kg |
Service life | Salt spray testing results in at least five years |
40HC container | 560 unit if covered clamp and base |
Packing | Metal Pallet Wrapped with plastic film as Portable temporary fencing, we offer customized stillages |
Productions Time | All stocked |
Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
What papers do you provide after shipping containers | |
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |
Parameters Temporary Fencing Panels Smart
HDG 60gram-80gram temporary fence panels specifications | |
Dimensions | 2100mm(H)*2400mm(W) |
Tubing | O.D. 32mm*1.40mm thick |
Mesh Spacing | 60mm*150mm*3.00mm |
Infill mesh size | 1736mm*2336mm |
V wire number | 36 *sticks wire |
H wire number | 17 *sticks wire |
Finished 1300 temporary fence | 60gram-80gram |
Weight of panels | 14kg |
Service life | Salt spray testing results in at least five years |
40HC container | 560 unit if covered clamp and base |
Packing | Metal Pallet Wrapped with plastic film as Portable temporary fencing, we offer customized stillages |
Productions Time | All stocked |
Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
What papers do you provide after shipping containers | |
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |
Parameters Temporary Fencing Panels Standard
HDG 60gram-80gram or HDG 42 microns equal to 300gram/m2 temporary fence panels specifications | |
Dimensions | 2100mm(H)*2400mm(W) |
Tubing | O.D. 32mm*1.40mm thick |
Mesh Spacing | 60mm*150mm*4.00mm |
Infill mesh size | 1736mm*2336mm |
V wire number | 36 *sticks wire |
H wire number | 17 *sticks wire |
Finished 1300 temporary fence | 60gram-80gram |
Weight of panels | 22kg |
Service life | Salt spray testing results in at least five years |
40HC container | 560 unit if covered clamp and base |
Packing | Metal Pallet Wrapped with plastic film as Portable temporary fencing, we offer customized stillages |
Productions Time | All stocked |
Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
What papers do you provide after shipping containers | |
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |

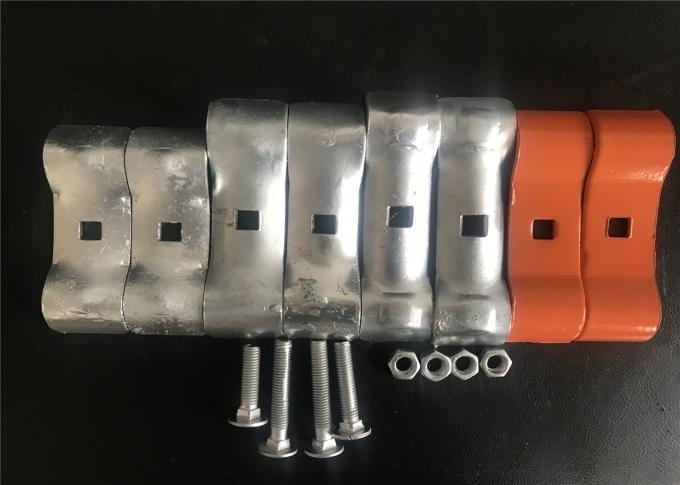

Temporary Fence Clamps
3"/75mm center distance temporary fencing clips suit O.D. 25mm O.D. 32mm OD38mm O.D. 40mm O.D. 42mm outer pipes | |||
Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
Packing | All packing in papers made carton available assemble | ||
PHOTOS | |||
90mm/3.5" center distance temporary fencing clips Portable temporary fencing factory direct supply | |||
Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
Packing | All packing in papers made carton available assemble | ||
PHOTOS | |||
100mm /4" center distance clips for Outer Diameter Temp Fence Post | |||
Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
Packing | All packing in papers made carton available assemble or Portable temporary fencing customized | ||
PHOTOS | |||

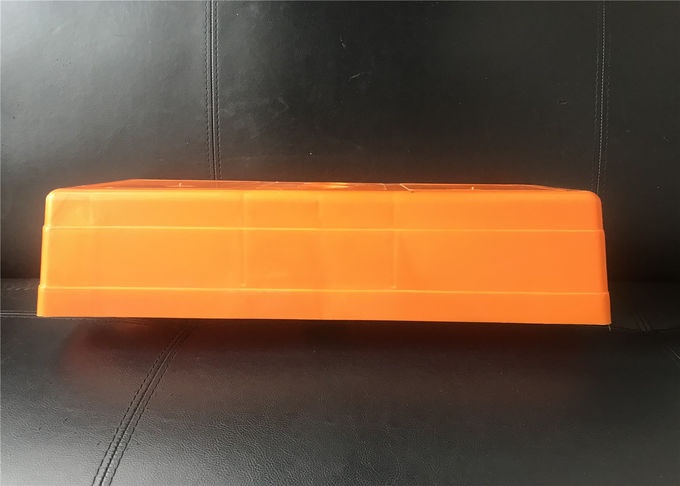

Temporary Fencing Blocks
TEMPORARY FENCE BASE -TOPFENCE004HDPE | ||||
Length | 600mm | |||
Width | 220mm | |||
Height | 150mm | |||
Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
Color | We are elderly Portable temporary fencings; our temporary fence blocks are available for all RAL. | |||
Packing | Metal pallet wrapped with plastic film | |||
Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
Materials | HDPE | |||
Photos | ||||
TEMPORARY FENCE BASE -TOPFENCE002HDPE | ||||
Length | 620mm | |||
Width | 230mm | |||
Height | 130mm | |||
Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
Color Portable temporary fencing | RAL | |||
Packing | Metal pallet wrapped with plastic film | |||
Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
Materials | HDPE | |||
Photos | ||||
polymer polypropylene temporary fence base was one of eldest fence base presented in Australia market since 2006 years it made by commercial-grade PPC the materials are durable and more flexible even drop from high positions without a crack of concrete due to inside would put rebar with 6.00mm thickness to support concrete with base
TEMPORARY FENCE BASE -FENCE009 | ||||
Length | 560mm | |||
Width | 245mm | |||
Height | 150mm | |||
Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
Color | ||||
Packing | Metal pallet wrapped with plastic film | |||
Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
Materials | PPC/polymer polypropylene | |||
Photos | ||||
Temporary fence brace or stay used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness, per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or7.2 meter one stay live. Bracing is an essential part of a sturdy temporary fencing system. It adds safety and stability and ensures your fencing is well balanced and will not topple under light stress, such as wind or workers leaning on the fence. BMP can provide specialist advice and assistance in calculating the bracing you may need for your site and the quantity.Temporary Fencing Brace
1530mm bracing | 1830mm bracing |
